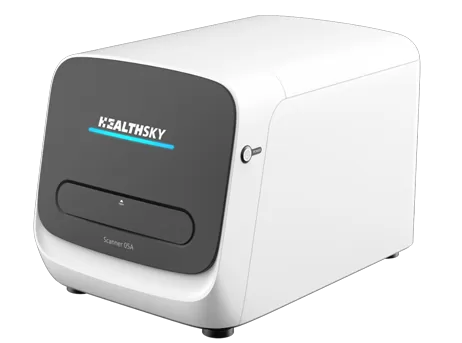

The HealthSky iScanner series performance is defined by a perfect balance of speed, quality, and compatibility. We offer industry-leading detail-up to 0.13 μm/pixel at 40X-essential for cytology. Scanning speed is fast, completing a slide in ~40 seconds at 20X.
Furthermore, Z Stack imaging resolves cell overlap, guaranteeing clearer cellular images, and the system is highly compatible, supporting multiple common formats and seamlessly integrating with various information systems.
| Model | iScanner Whole Slide Imaging System |
| Compatible Slide |  Compatible with standard biological slides with dimensions: Length 75.5 ± mm, Width 25.5 ± 1 mm, Thickness 1.1 ± 0.1 mm. |
| Capacity | up to 5 slides. |
| Label Size | 20 mm×25 mm |
| Barcode Type | Barcode, QR Code, Text |
| Objective Turret Positions | Total 4 positions. |
| Standard configuration: 20X objective (NA 0.75), 40X objective (NA 0.95). | |
| Image Resolution | 20X Objective: 0.25 μm/pixel scan resolution, tolerance ± 10%. |
| 40X Objective: 0.13 μm/pixel scan resolution, tolerance ± 10%. | |
| Scanning Speed (15 mm×15 mm) | 20X Objective: Scanning time ≤40 seconds. |
| 40X Objective: Scanning time ≤120 seconds. | |
| Weight | 50 KG |
| Dimensions | 578 x 400 x 420 mm (L x W x H) |
