Tissue dehydration and embedding are processed by the same machine without manual operation.

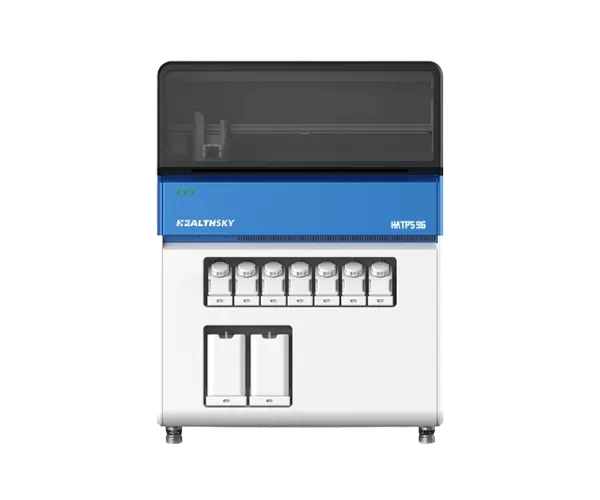

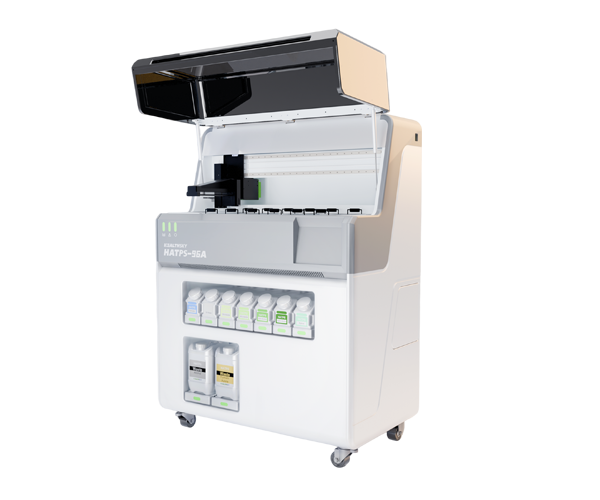

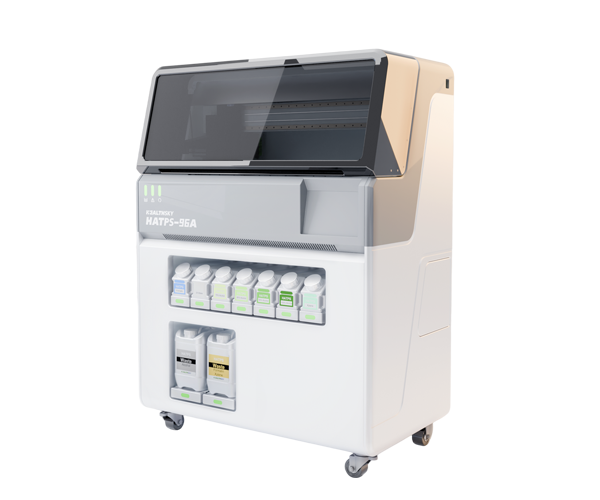

HATPS 96 Automated Tissue Dehydration and Embedding System is a fully automated svstem that integrates tissue dehydration and embedding. By HATPS 96, every single specimen is automatically and individually processed, consisting of fixation, dehydration, clearing, wax infiltration, and embedding.
| Model | ATP-96A | |||
| Capacity | 3 processing modules, 32 cassettes per batch, 96 cassettes per batch. | |||
| Every processing module can run independently. | ||||
| Pipette Accuracy | ±5% | |||
| Waste Liquid Manifold | 2 (Hazardous waste and non-hazardous waste liquid) | |||
| Temperature Control Parameters | Thermostatic Module Parts | Paraffin Tank | Paraffin Dispenser | |
| Temp. Range | 4℃-75 ℃ | Room Temp. -75 ℃ | Room Temp. -75 ℃ | |
| Temperature Accuracy | ±1 ℃ | ±2 ℃ | / | |
| Heating-up Time | £20 min | £60 min | £20 min | |
| Cooling-down Time | £40 min | No refrigeration | No refrigeration | |
| Operation & Display System | Android Operation System | |||
| Supply Voltage | AC198～240 V, 50Hz/60Hz | |||
| Dimension | 1150 x 700 x 1500 mm (L x W x H) | |||
| Weight | £100 KG | |||

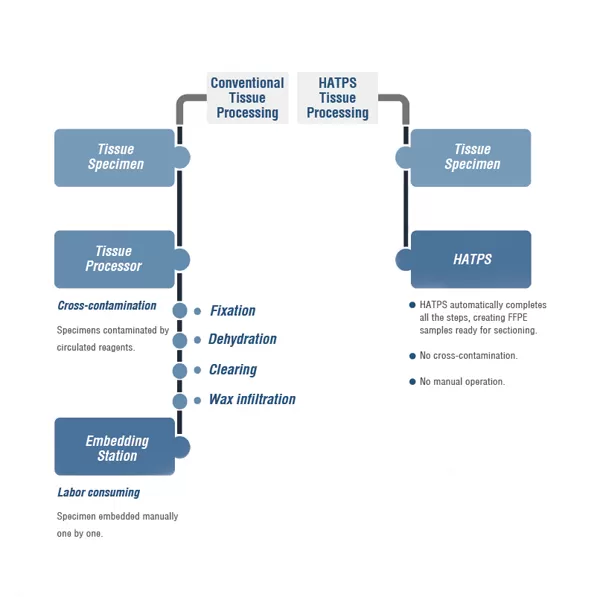

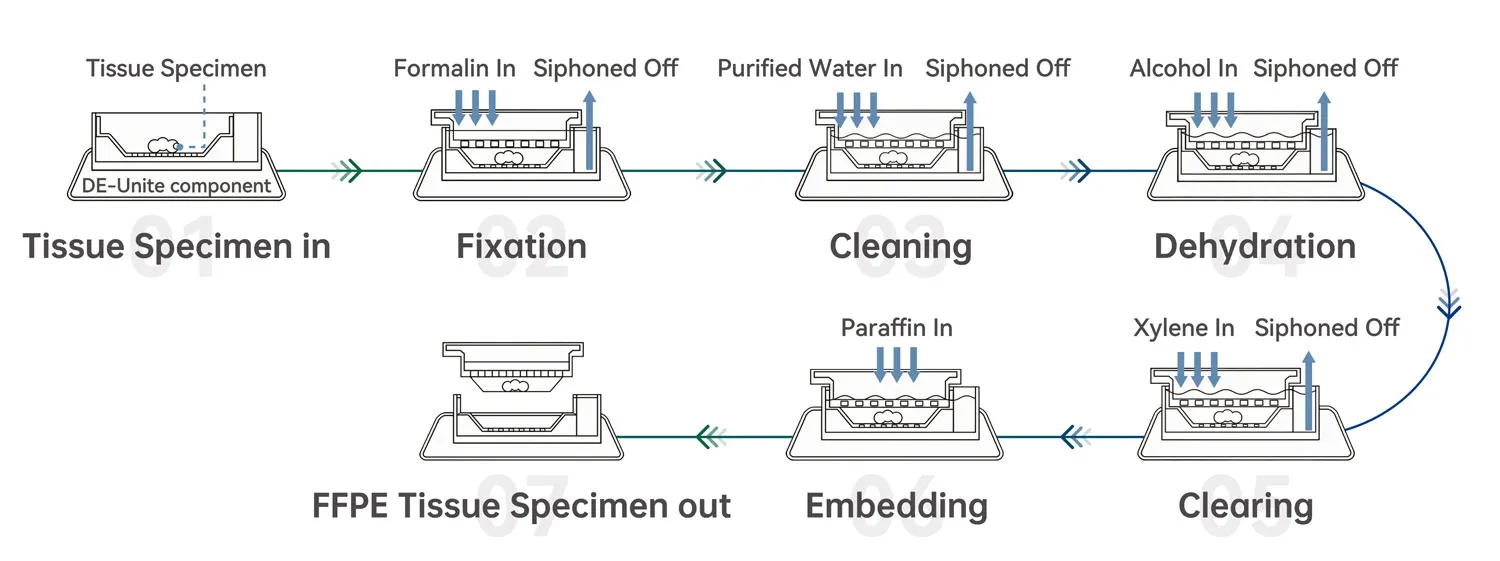

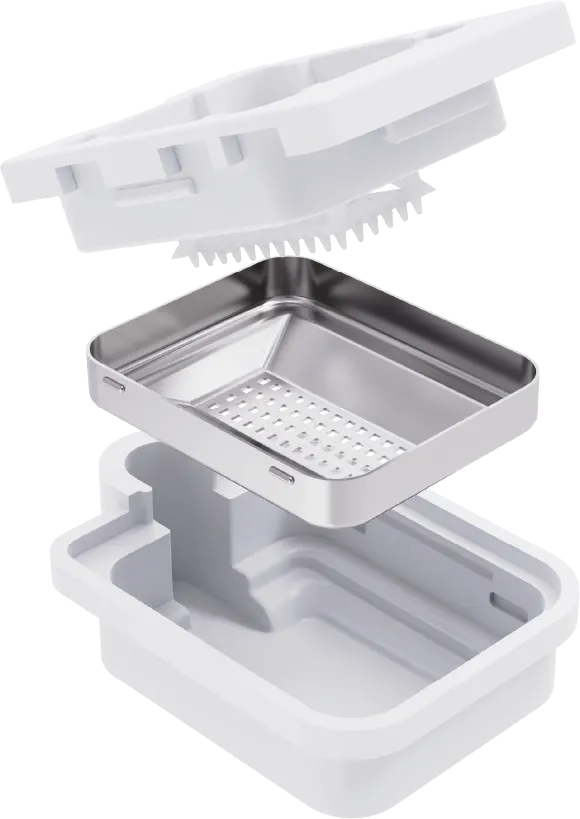

The HATPS 96 Automated Tissue Processing System is a fully automatic tissue processing device based on DE-Unite technology. It controls the mechanical arm, temperature control module, constant temperature paraffin tank and dispenser, pipette bundle and other functional modules through a software program, and automatically fixes, dehydrates, clearing, paraffin infiltration and embedding the tissues in each independent unit, and finally forms a tissue block. Fixation, dehydration and clearing are performed by adding program, which are independent of each other, and the cleaning pipeline action is inserted between each step, ensuring that there is no cross contamination between specimens during the whole process
Individual Tissue Processing & Automated Embedding
Every Specimen Processed Individually
Maintains tissue orientation
Ensures correct embedding surface
Secure tissue positioning
Optimized reagent exchange
Independent reagent chamber
Individual processing environment
Core biopsies
Endoscopic biopsies
Small tissue specimens
Between1.5x1.5x1.5-4x4x3mm
Prostate biopsies
GI biopsies
Needle biopsy strips
Between 1.5x1.5x1.5-5x3x18mm

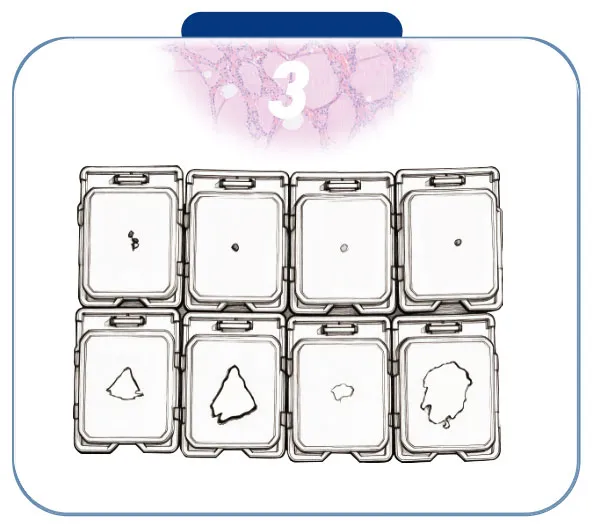

Routine surgical specimens
Between 4x4x3-11x17x4.5mm
