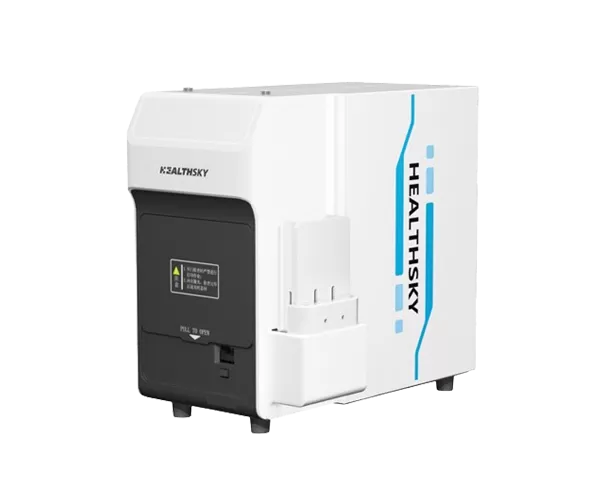

EMarker-21A-S100 Ultraviolet Laser Slide Printer is a printing device developed by HealthSky that can leave permanent marks on the writing surface of the microscope slides.
EMarker-21A-S100 utilizes ultraviolet laser printing technology to create crisp, permanent, and high-resolution markings at high speed.
The printer is equipped with one slide magazine, maximum capacity of a single filling is 100 pcs of slides.
A portable slide cartridge can be inserted below the outlet, which can store about 30 slides at a time. An Auto Slide Collector is also optional, which can store about 100 slides at a time.
| Model | EMarker-21A-S100 |
| Compatible Slide | Color frosted slides |
| Slide dimension: | |
| Length ≤76.2 mm, width ≤25.7 mm, thickness 1.1±0.1 mm. | |
| Printing Technology | Non-Contact Ultraviolet Laser |
| Print Head | 1 |
| Print Color | Black to Gray |
| Print Content | Alphanumeric, 1D/2D barcodes, Graphics, Symbols |
| Single Print Speed* | ≤4 seconds |
| Batch Print Speed* | ≤400 seconds /100 pcs |
| Resolution | 2500 dpi |
| Slide Capacity | 100 pcs maximum |
| Loading Access | 1 |
| Single Feeding Capacity | 1 pcs/access |
| Operation & Display | PC |
| Operating System | Windows11, Windows10, Windows 7, x64/x86; Windows XP |
| Data Interface | USB |
| System Interface | LIS, LIMS, HIS, PIS, PACS |
| Supported Encoding Data | Texts, Numeric, Alphabets, Basic symbol |
| Auxiliary Functions | Dust Filter, Scan to print, |
| Repetitive task reminder, Running fault alarm | |
| Supply Voltage | 100-240 VAC, 50/60 Hz |
| Dimension (L × W × H) | 245×410×360 (mm) |
| Weight | 18.5 kgs |
