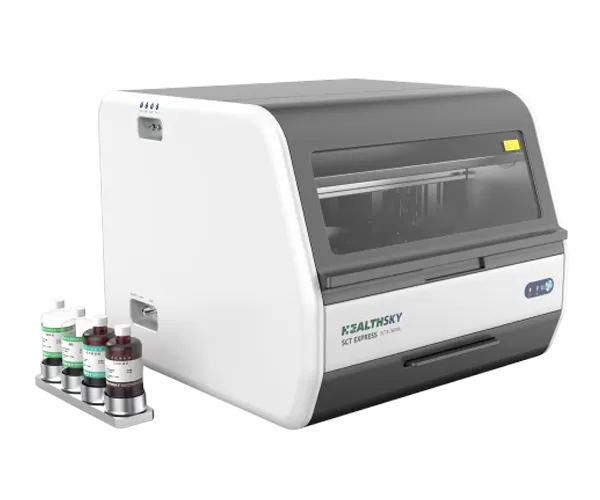

SCTE-3600A Fully Automated Liquid-Based Cytology Workstation

HealthSky SCTE-3600A is a fully automated Liquid-Based Cytology Workstation used for cytology specimen processing and staining. The SCTE-3600A produces monolayer slides with clean background, optimal cell deposition, and better maintained cellular morphology. The produced slides can be used for cytologic categories as defined by The Bethesda System.

Features of SCTE-3600A Fully Automated Liquid-Based Cytology Workstation

01
High Efficiency

36 specimens are processed in 50 minutes

02
SCT Utilized

Improves the quality and clarity of the prepared slides

03
Fully Automated

Whole process without human intervention

04
Wide Application

Applicable for Gyn and non-Gyn cytology

01
High Efficiency

36 specimens are processed in 50 minutes

02
SCT Utilized

Improves the quality and clarity of the prepared slides

03
Fully Automated

Whole process without human intervention

04
Wide Application

Applicable for Gyn and non-Gyn cytology

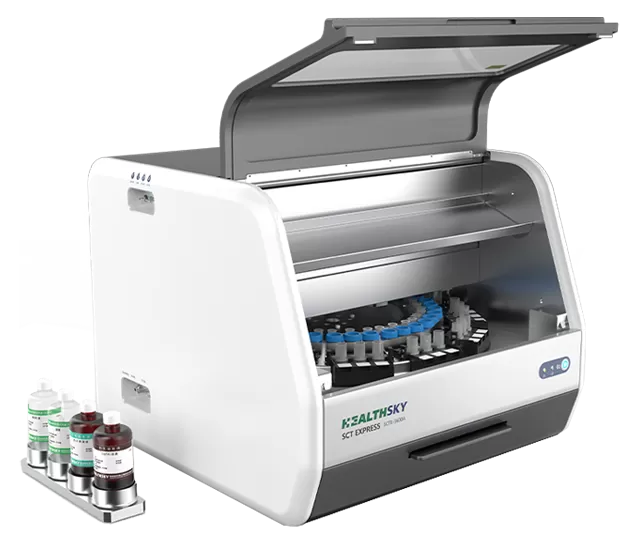

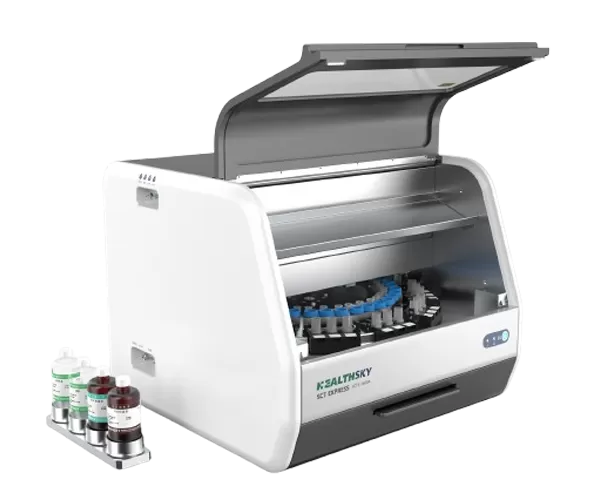

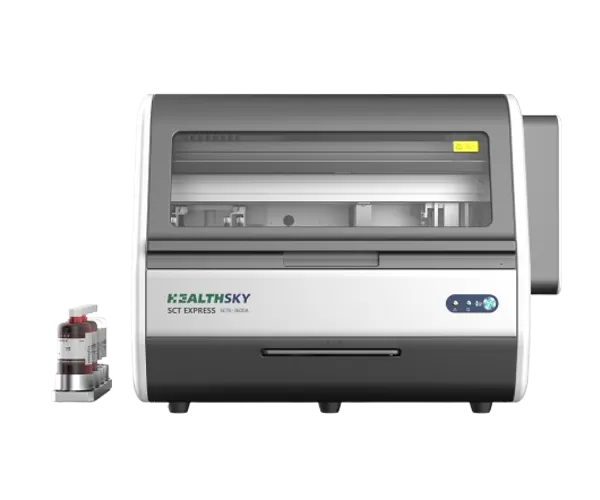

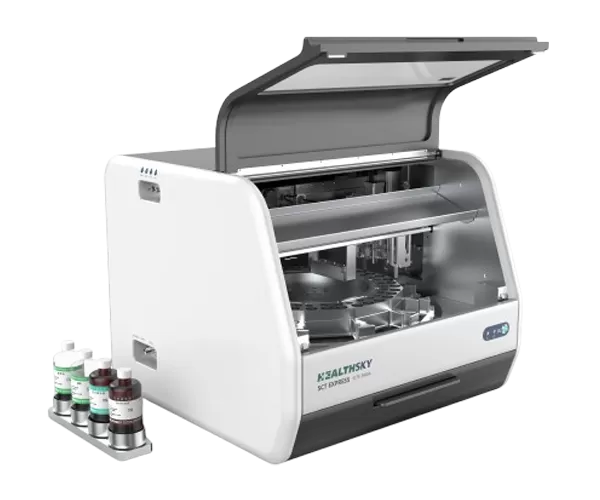

SCTE-3600A Fully Automated Liquid-Based Cytology Workstation Details

SCT Utilized

Cells adhere to the slide and form an evenly distributed monolayer with minimal overlap.

Wireless Charging

The moblie operating device allows wireless charging.

Unique Cell Preservation Vial

Repeated sampling without lid opening.

SCTE-3600A Fully Automated Liquid-Based Cytology Workstation Details SCTE-3600A Fully Automated Liquid-Based Cytology Workstation Details
Compact Size

Compact size applicable for limited space in laboratories.

Acceleration Sedimentation

The acceleration sedimentation adopted can greatly reduce processing time.

Full Closed Design

Full closed design throughout the whole operation avoids safety risks.

Specification of SCTE-3600A Fully Automated Liquid-Based Cytology Workstation

ModelSCTE-3600A
Capacity3 specimens per unit, 1-36 specimens per batch
Applicable SpecimensGynecological (GYN) Specimen
Sputum Specimen
Serous Effusion Specimen
Urine Specimen
Fine Needle Aspiration (FNA) specimen
Reagent Manifold4 (Alcohol, Diluent, Hematoxylin, EA/OG)
Data InterfaceBluetooth
Supply VoltageAC100-240V, 50/60Hz
Dimension870 x 775 x 640 mm (L x W x H)
Weight125 KG
